THE 624 line

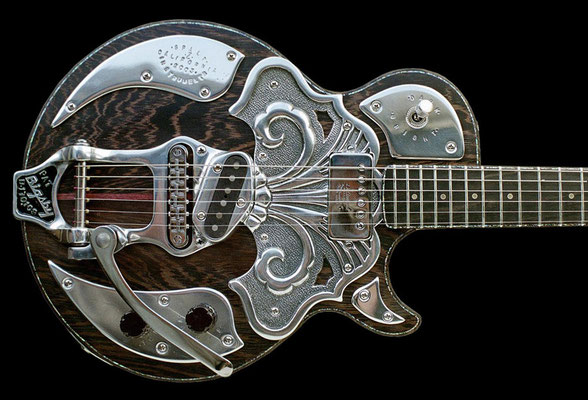

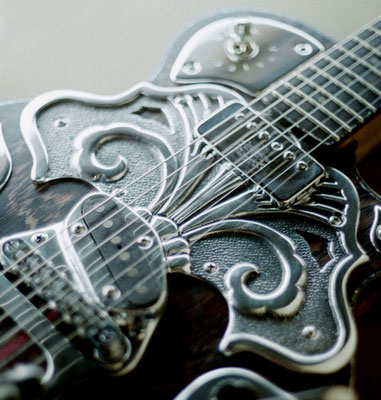

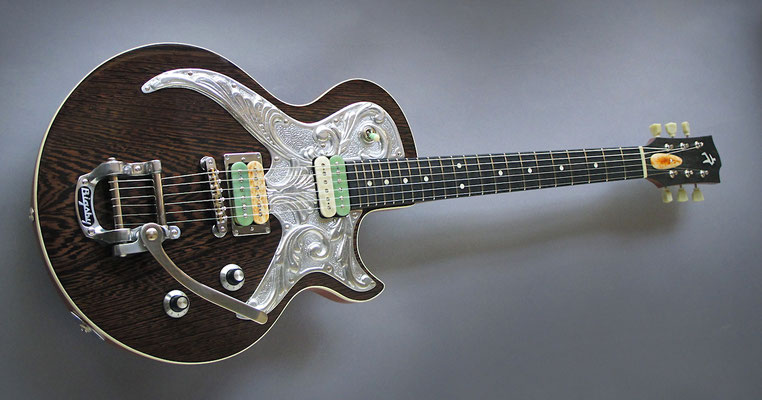

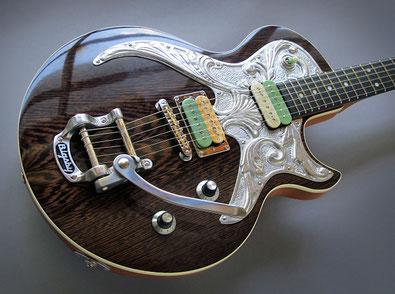

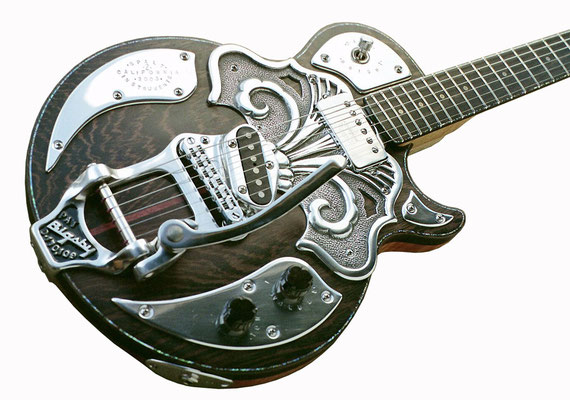

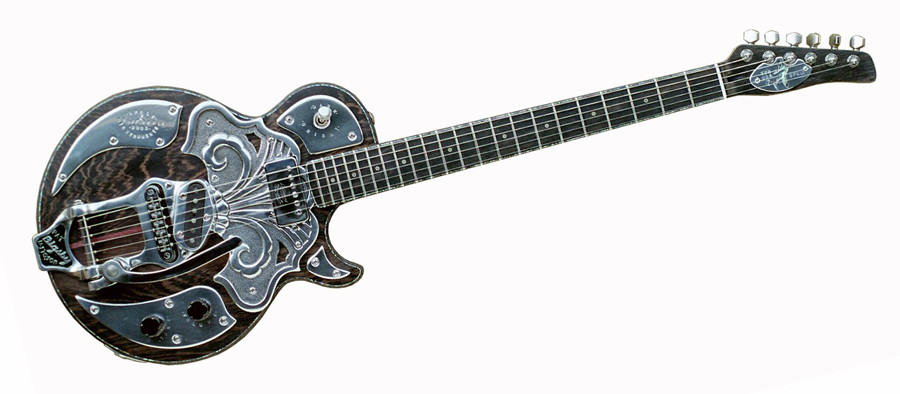

'Ruby 624'

I had this old aluminum decorative piece for a while until I finally decided to fashion a guitar around it.  The reissue of the Bigsby B-16 tremolo gave me the opening I was looking for.  The piece (stamped 'Ruby 624' in the back) became the centerpiece and was fitted with a vintage DeArmond humbucker.  The body top is Wenge, with a Purpleheart centerstripe and Abalone purfling which also extends along the sides of the fingerboard.

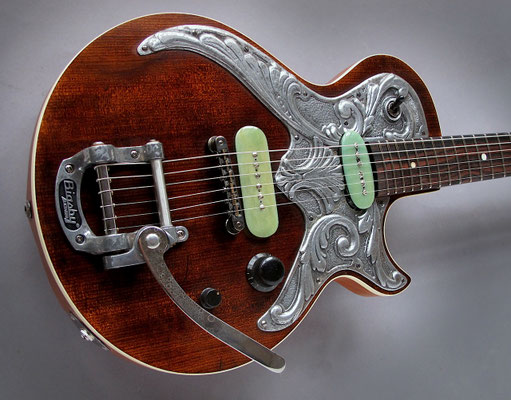

The 624 line was inspired by 'Ruby 624'.  I carved a custom mold for the aluminum element and had it cast.  The guitars have a chambered Mahogany body with a deep tenon set neck.  The slightly offset shape is designed to look best slung low, as stage guitar.



Click here for work images

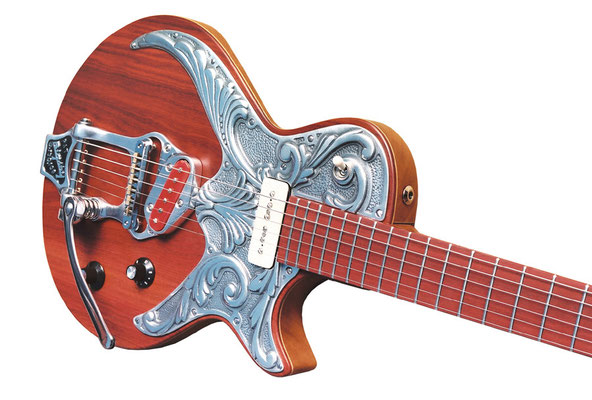

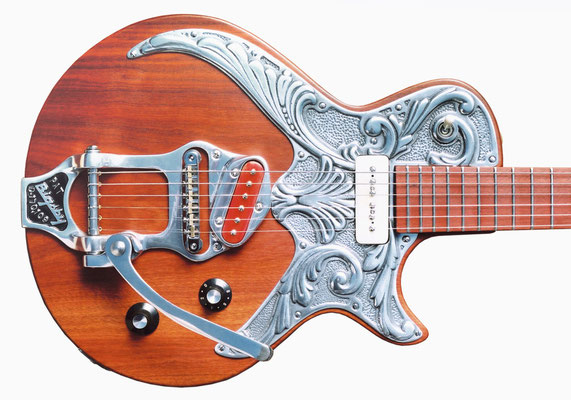

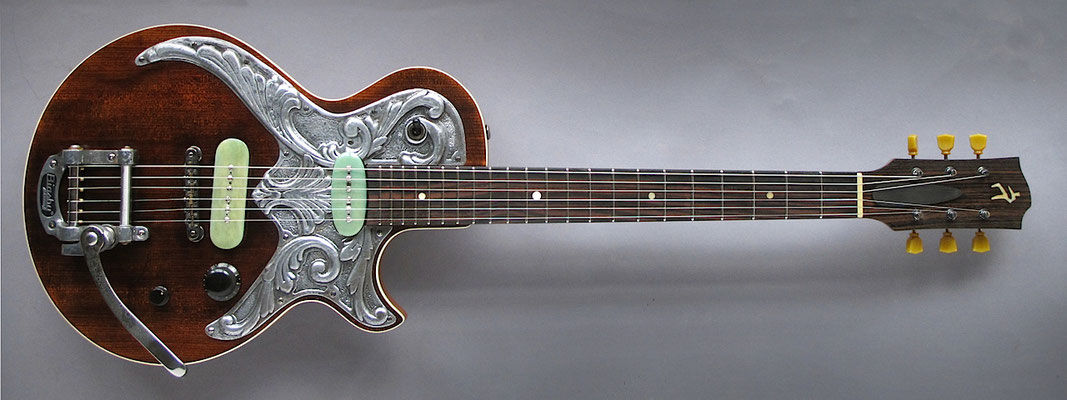

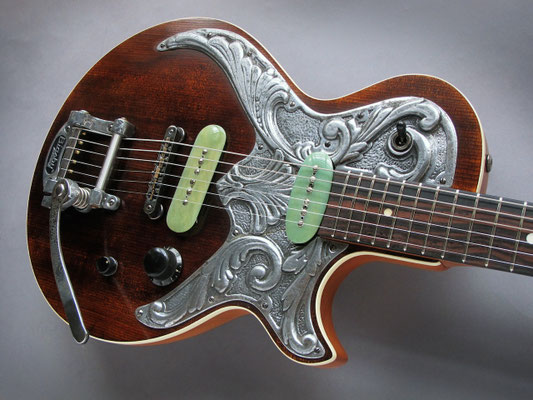

624 BT

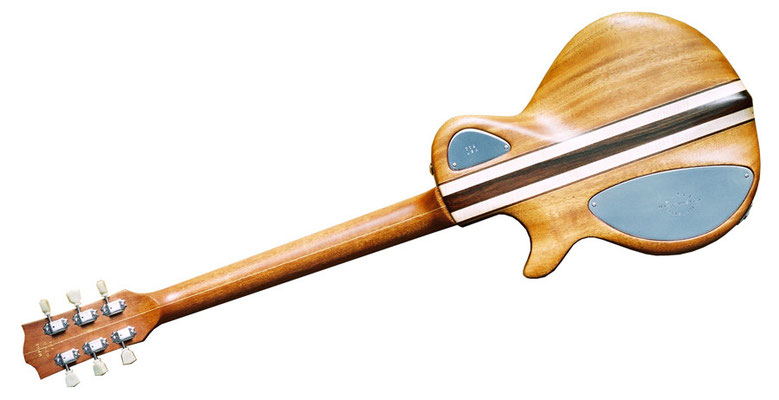

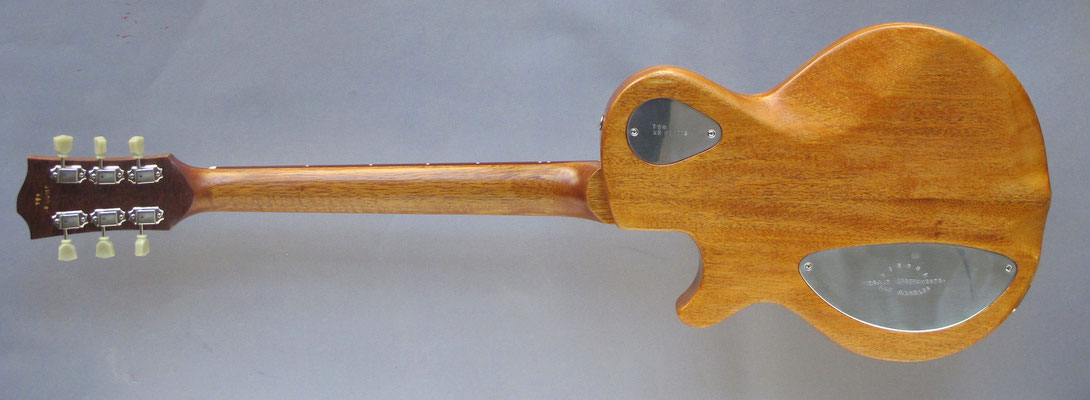

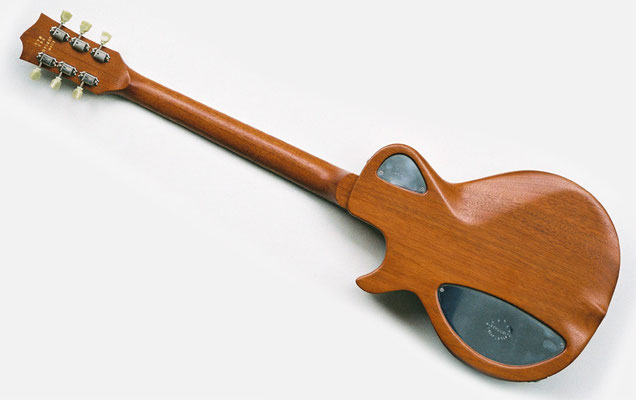

The top, fingerboard and headstock overlay are made from Bloodwood - an appropriate name for the rich red color of this wood.  The back is old-stock Mahogany with a centerstripe of laminated flame Maple and Rosewoood.  The neck is Mahogany.  A Bigsby B-16 and two 'BoneTop' pickups along with Gotoh vintage style locking tuners are fitted.

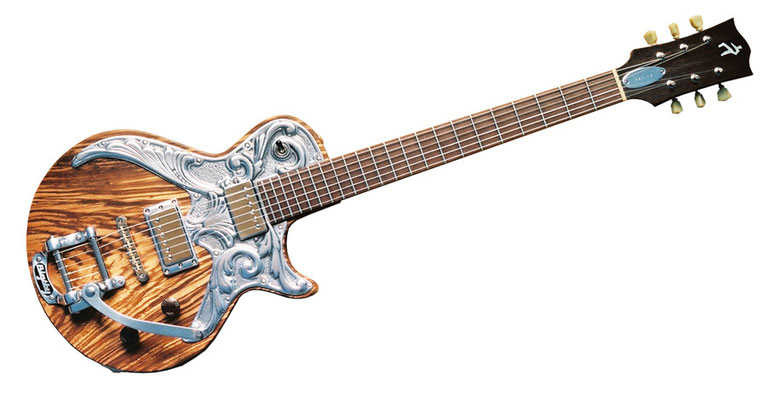

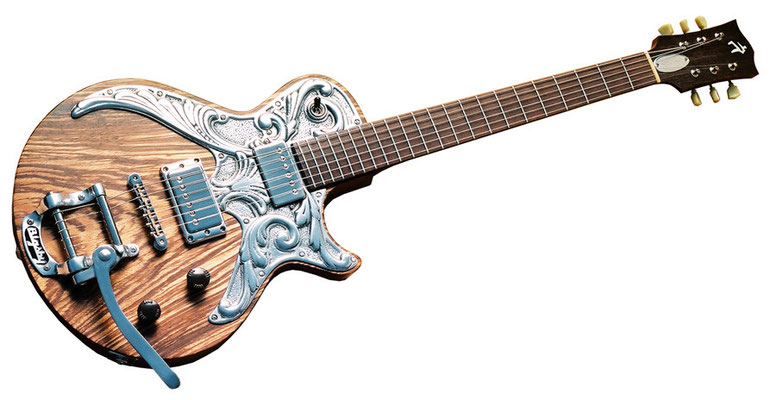

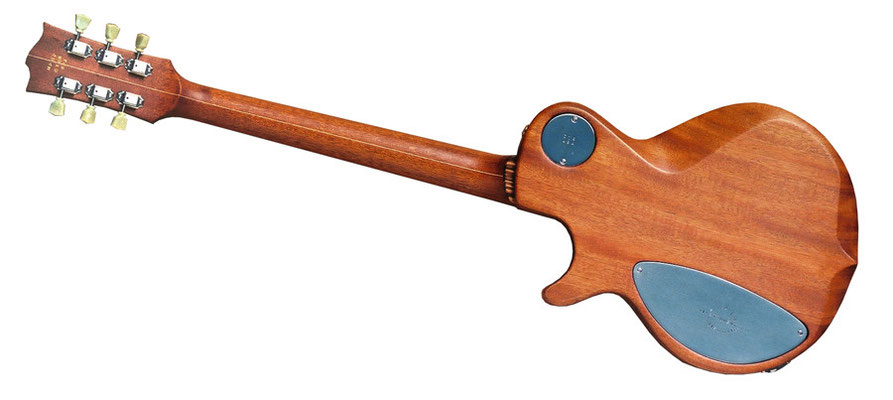

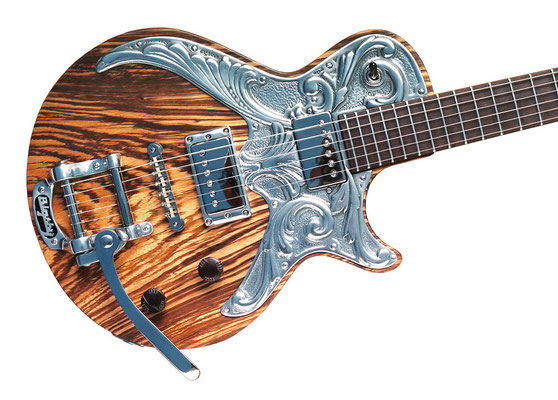

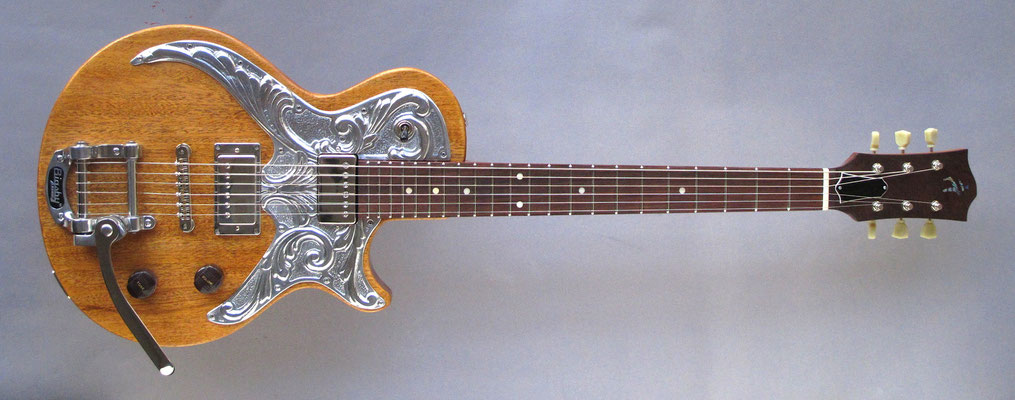

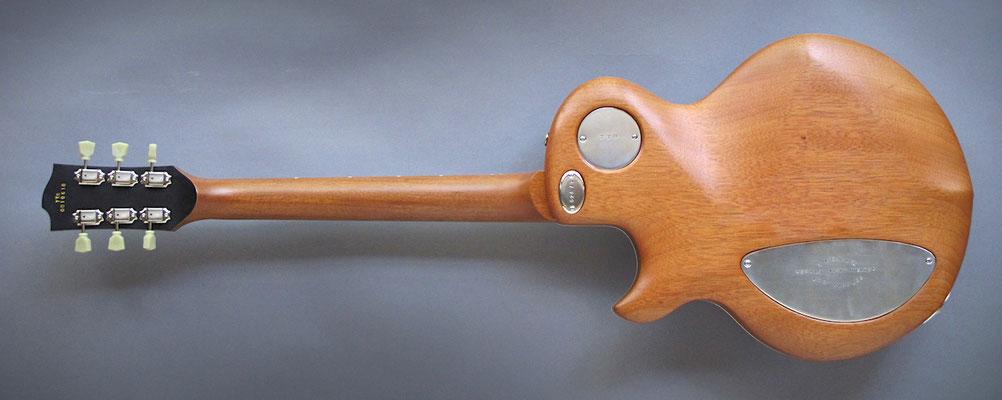

This 624 is equipped with two Lollar Imperials (low wind neck) along with a Bigsby B-5.  The top is Zebrawood and the fingerboard Wenge.  The body and neck are old stock Mahogany. 3.4kg 7lbs8oz


624 HBm

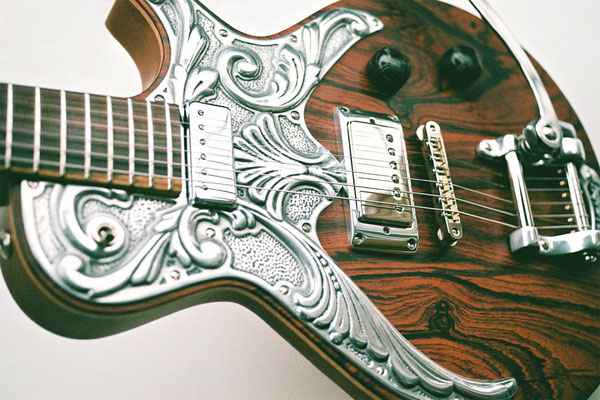

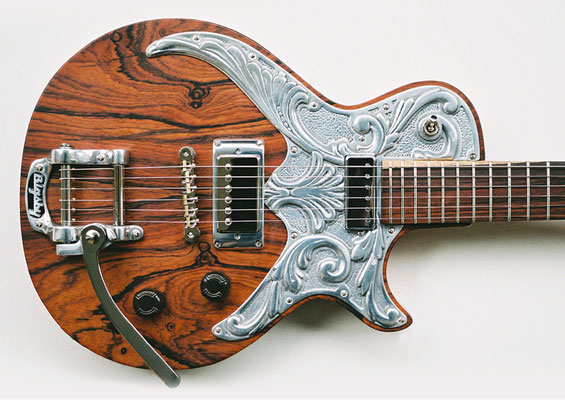

A Cocobolo top and fingerboard grace this 624.  This one has a Lollar minihumbucker in the neck position, for a clearer, more transparent tone.

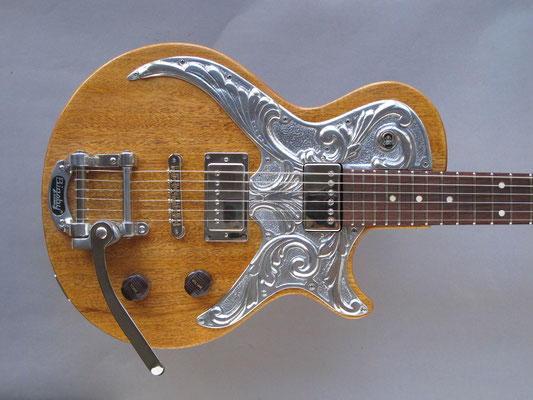

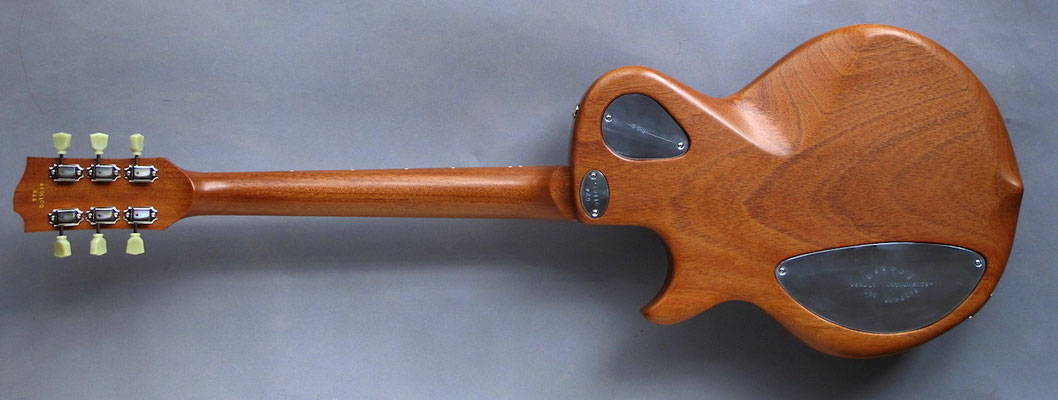

Frankie's 624

Korina Neck and Body.  Rosewood fingerboard, 25 ½" scale.  Aluminum casting from a second run done in Austria.  Gotoh vintage style tuners, ABR bridge, Bigsby B5, SD 59/JB humbucker combination.  Vol, tone, 3-way switch. Dunlop Straplocks.

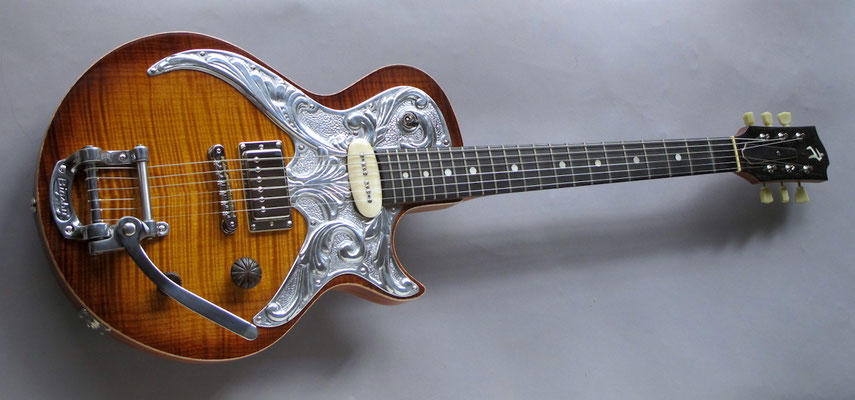

624 Burst

Flame Maple top over Mahogany body

Mahogany neck, Ebony fingerboard

24 ¾" scale, 22 Dunlop 6150 frets, 10"-12"radius

Gotoh vintage style locking tuners

Spalt BoneTop P-90 in neck

Lollar Imperial in bridge

Vol, tone, 3-way switch

ABR bridge, Bigsby B5 tremolo

Dunlop Straplocks


624 Raw

Spruce top over Mahogany body

Mahogany neck, Macassar Ebony fingerboard

24 ¾" scale, 22 Dunlop 6150 frets, 10"-12"radius

Gotoh vintage style locking tuners

Spalt BoneTop P-90 in neck & bridge

Vol, tone w/ push-pull for series  mode

3-way switch

ABR bridge, Bigsby B5 tremolo

Dunlop Straplocks


624/7

Mahogany body w/Wenge top

Mahogany neck w/Ebony fingerboard

24 ¾" scale, 22 Dunlop 6150 frets

Gotoh vintage style locking tuners

Fralin Pure PAF BoneTop set

Vol, tone, 3-way

ABR bridge

Bigsby B5 tremolo

Dunlop Straplocks
